Executive answer
The eight inputs at a glance
- Start from the intended user and critical task—not from a preferred keypad shape or a supplier’s standard stack.
- Translate device-level human-factors decisions into controlled component inputs for key geometry, legends, feedback, circuit mapping, enclosure fit and cleaning exposure.
- Evaluate the production-representative interface with the real enclosure, electronics, display and intended users; a loose overlay or generic sample cannot validate the finished device.
- Keep component evidence and device responsibility separate: a membrane-switch supplier can support the evidence package, but cannot grant FDA approval or validate the finished medical device.
Current guidance context

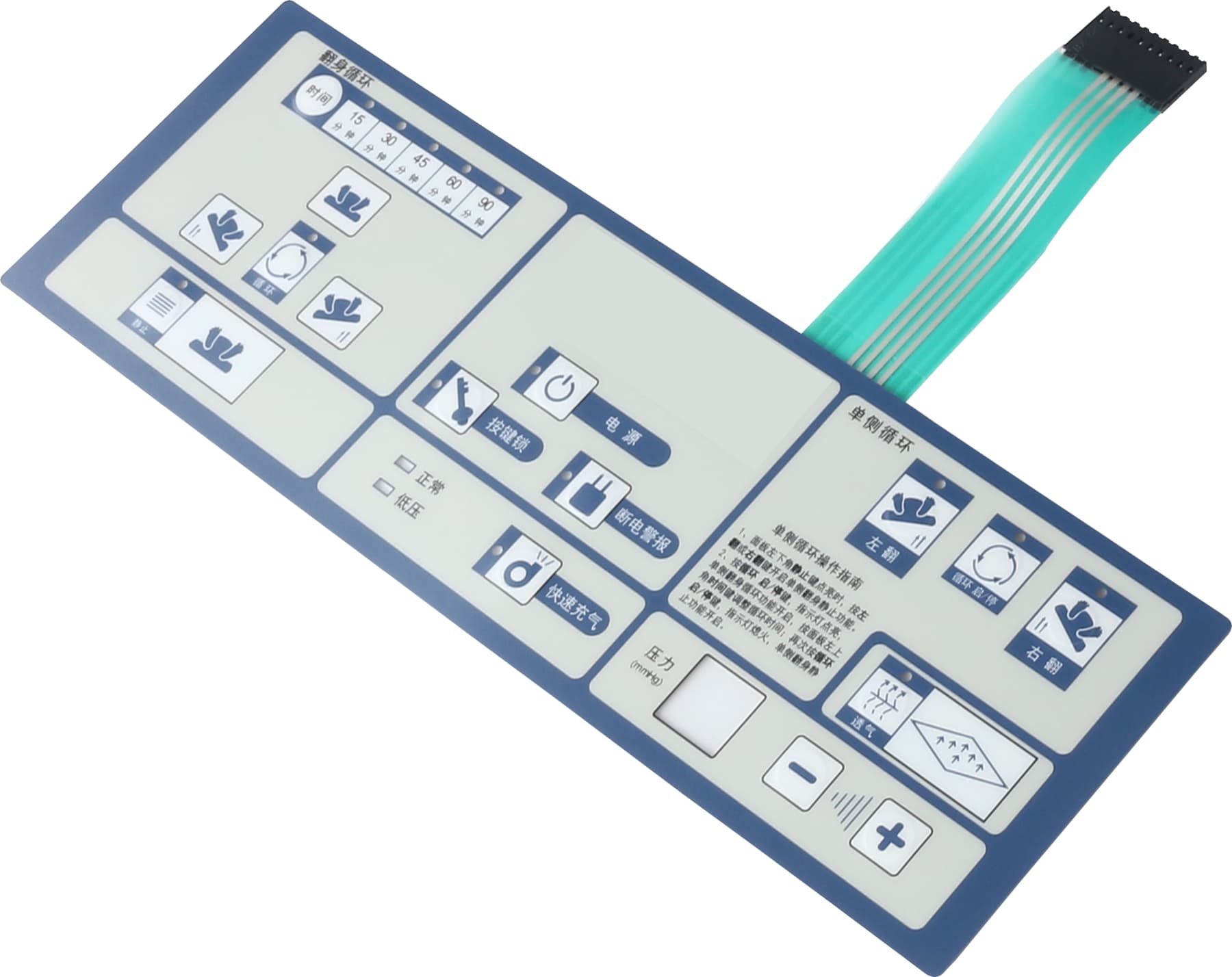

Why the 2026 FDA guidance matters to a membrane-switch drawing
FDA’s final guidance on applying human factors and usability engineering to medical devices was issued in August 2026. It asks device teams to consider intended users, uses and use environments, and to reduce hazards caused by use error. Physical controls are part of that user interface, so the membrane panel cannot be treated as decoration added after the workflow is settled.
The guidance does not prescribe one key size, actuation force, overlay material or switch construction. Instead, it creates a device-level design and evidence problem. The useful supplier question is therefore not “Which medical keypad is standard?” but “Which controlled component inputs will let the device team evaluate its critical tasks in the representative system?”
Define intended users before arranging the keys
A nurse, laboratory technician, home-care user and service engineer may interact with the same equipment in different ways. Their training, physical capabilities, language, protective equipment and frequency of use can change what counts as a clear control. A compact layout that works for a trained operator at a bench may fail when an infrequent user is wearing gloves or responding under time pressure.
The interface brief should identify who performs each task and which tasks are permitted for each user group. That information can then drive key spacing, grouping, embossing, legend language, confirmation behavior and access to service functions. The component supplier should receive the resulting requirements, not personal data about study participants.
- User groups and training assumptions
- Glove type, dexterity or reach constraints that affect the interface
- Language, symbol and accessibility requirements
- Functions that must be separated by role or access level
Recreate the real use environment—not a clean desk
Lighting, noise, motion, mounting angle, moisture, cleaning residue and nearby equipment can all change how a control is seen and operated. The same printed color may look different beneath a clinical light or behind a display window; the same tactile sample can feel different once it is bonded to the actual enclosure and backed by the real support surface.
Record the expected environment in observable terms. “Hospital use” is too broad. A useful brief states the viewing distance and angle, ambient-light range, mounting position, glove condition, cleaning method, likely contamination routes, vibration or cart movement, and any alarm or status cue that competes for attention.
Map critical tasks before choosing tactile details
Critical tasks are not simply the keys pressed most often. They are user actions—or failures to act—that could lead to serious harm when performed incorrectly or omitted. The device team should identify those tasks through its risk analysis and use-related evidence, then map every relevant input, display state and feedback cue.
For a membrane interface, the mapping should show the function name, sequence, precondition, possible error, system response and recovery path. This exposes layout conflicts early: adjacent keys with opposite consequences, a mode-dependent key whose state is unclear, a hold action that resembles a tap, or an alarm acknowledgment that is visually indistinguishable from routine navigation.
- Key-to-function and mode mapping
- Critical versus routine actions
- Foreseeable slips, reversals, double presses and omissions
- System response, confirmation and recovery for each critical input
Use the control hierarchy to prevent predictable errors
Color alone is a weak separator for controls with very different consequences. Stronger differentiation can combine location, spacing, shape, size, embossing, guarded access, press duration, software confirmation and state feedback. The right combination follows the critical task and the complete device architecture—not a styling preference.
The drawing should identify active key boundaries and the intentional differences between controls. The controller specification should identify debounce, long-press, repeat, lockout and confirmation logic. Keeping those boundaries explicit prevents a graphic change from silently altering the task flow or an electrical change from altering the expected response.
Select feedback from the task, not from a preference poll
Tactile feedback can help an operator recognize actuation, but it does not prove that the system accepted the command. Visual, audible or on-screen feedback may still be necessary, especially when the device changes mode, starts a timed process or rejects an input. Conversely, a non-tactile key may be suitable when the system provides clear immediate confirmation and the task does not depend on feeling a mechanical snap.
Approve feedback in the mounted assembly. Dome geometry, overlay embossing, spacer openings, adhesive, support beneath the key and enclosure flatness all affect the response. Record the sample revision and evaluation method so that “same feel” is not left as an uncontrolled memory during later production or change review.
Treat legends, windows and status cues as functional inputs
A legend is part of the user interface when it tells a user what a control will do. Its wording, symbol, contrast, size, location and relationship to a display state need to remain legible in the defined environment. A beautiful artwork file can still fail if a bezel hides a label, a dead-front effect reduces contrast, glare masks an indicator or a translated term no longer fits the active area.
The approval package should connect the controlled artwork revision to the key map and powered states. Review the real display, window, backlighting and enclosure together. Screenshots and print proofs help detect errors, but they do not replace evaluation of the production-representative optical stack.
- Controlled vector artwork and revision
- Language and symbol authority
- Contrast and viewing conditions for powered and unpowered states
- Display-window alignment, tint, glare and dead-front behavior
Define cleaning exposure at the complete enclosure boundary
A film or adhesive data sheet cannot establish that the finished interface tolerates a cleaning process. The device team should name each agent, concentration, application method, contact time, frequency, temperature, rinse or drying step, and the routes by which liquid may reach edges, seams, cut-outs or the tail exit.
Component screening can then use the proposed overlay, ink, coating, adhesive and mounted construction. Record the specimen, method, conditions and acceptance criteria. The result applies to that named component configuration; finished-device cleaning, disinfection, reprocessing instructions and labeling remain the responsibility of the device organization.
Freeze the validation configuration and control every later change
A representative validation unit should use the intended enclosure, mounting method, switch construction, artwork, electronics, software behavior, display and feedback channels. If a study uses a hand-built overlay, a different dome, a loose keypad, a substitute enclosure or simulated software, the device team should document why the difference does not undermine the task being evaluated.
After validation, even a seemingly small change can affect use: moving a legend, changing contrast, altering actuation feel, revising debounce logic, replacing an adhesive or shifting a tail exit. Change review should compare the proposed revision with the validated configuration, identify affected tasks and risks, and decide what engineering, usability or regulatory evidence must be repeated.
- One configuration record linking drawing, artwork, circuit, BOM, enclosure, firmware and sample
- Named acceptance evidence for dimensions, appearance, electrical function, feedback and cleaning exposure
- A deviation log for every non-representative validation feature
- A change-impact decision tied to affected critical tasks and verification evidence
